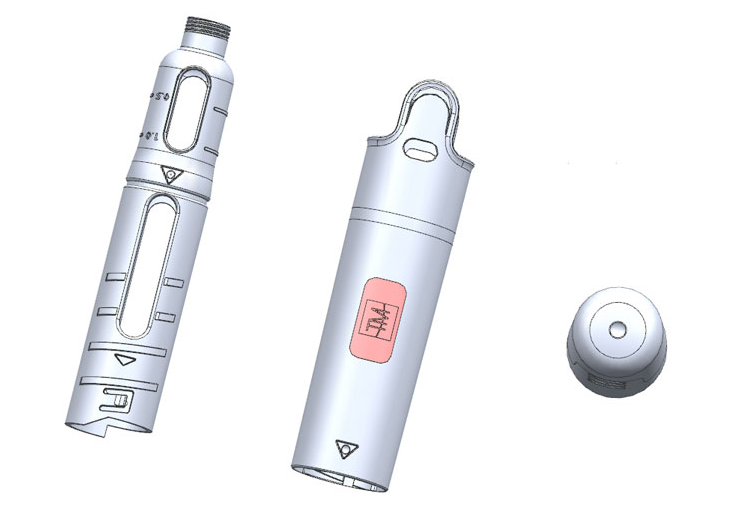

Part Name: 19-04-Gu &VI8 19-04-Portacartucho VI8&19-04-Tap VI7
No. of Cavity:1+1+1
Steel for cavity & core: 1.2344 HRC48~52
Resin: PC
Shrinkage: 0.8%
Part Size: Dia. 21*160 MM & Dia. 21*40MM
Tooling Size: 400*400*428 MM
Tool Weight: 522 Kg
Part surface finishing: VDI 3400 Ref. 30

Product smallest ID is 14MM, with many undercuts, can not accept ejector pin mark in product surface, tolerance is 0.01MM

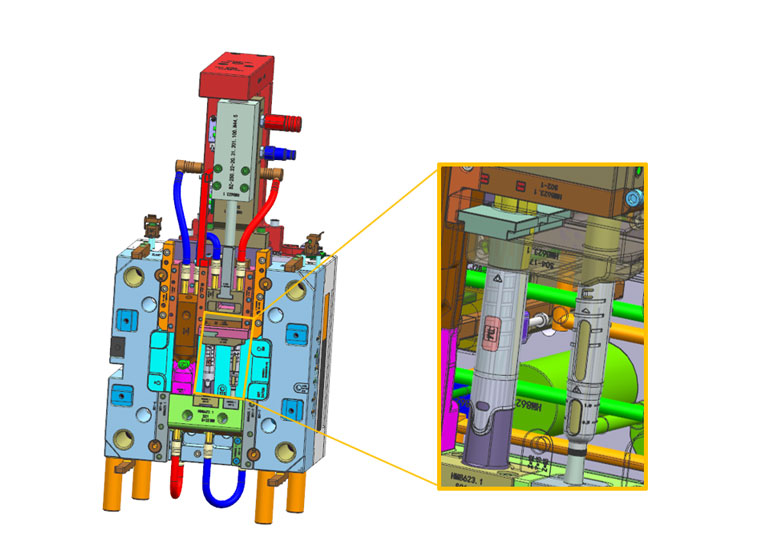

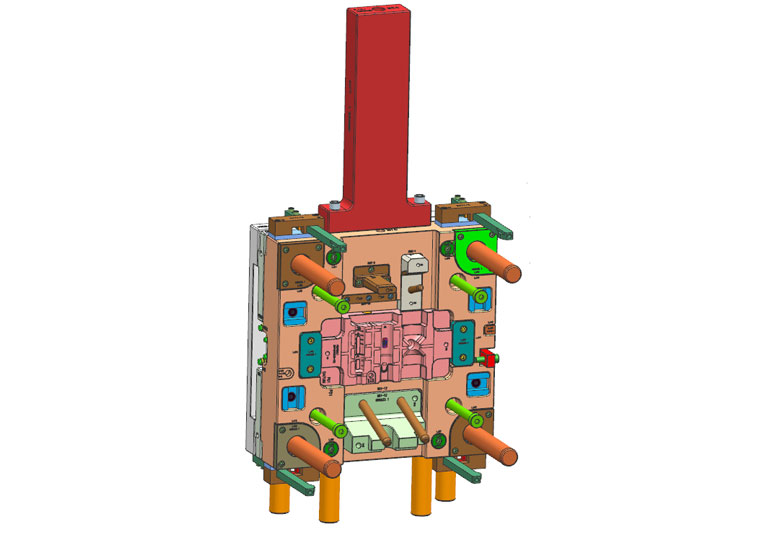

Optimized mold design and manufacturing process, the tooling structure was adopted ejecting whole sliders system with plastic part together, then slides release, realized no ejector pin marks in product surface and automatically production. Machining by R
