Head Lamp

Head Lamp

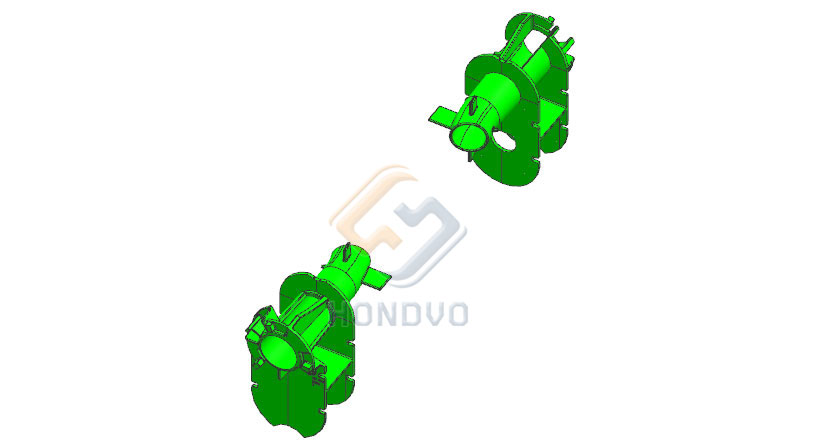

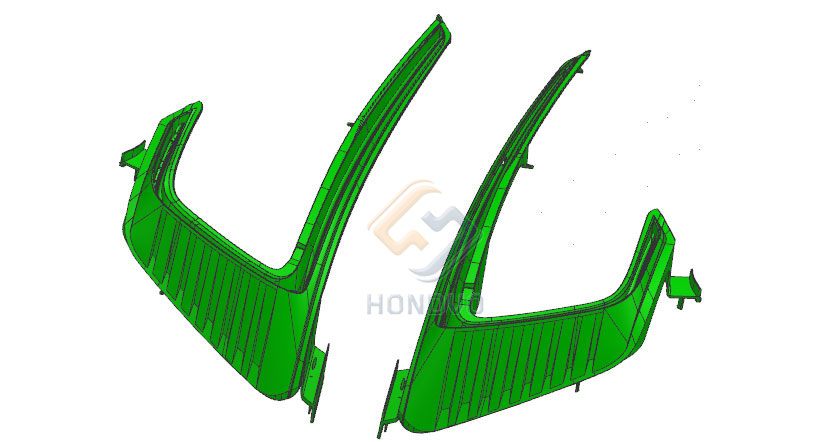

Part Name: Bezel Head Lamp
No. of Cavity: 1+1
Steel for cavity & core: 1.2344 ESR HRC45~48
Resin: PBT D401 RM
Shrinkage: 1.9%
Hotrunner Brand: HRS
Part Size: 390*297*400 MM
Tooling Size: 1050*1200*1118 MM
Tool Weight: 8290 Kg
Part surface finishing: SPI – A1 (high polishing)

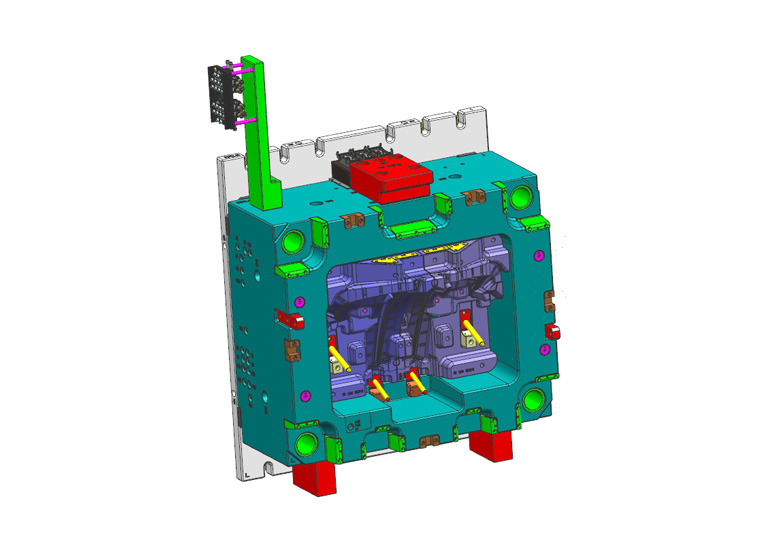

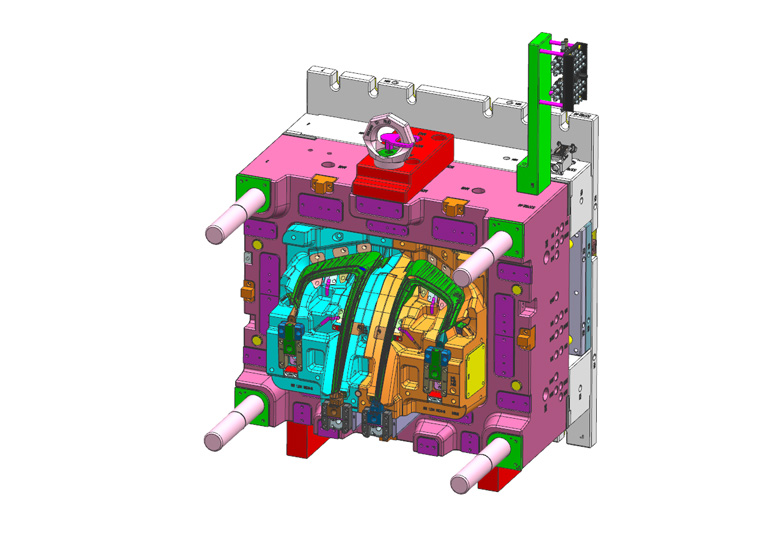

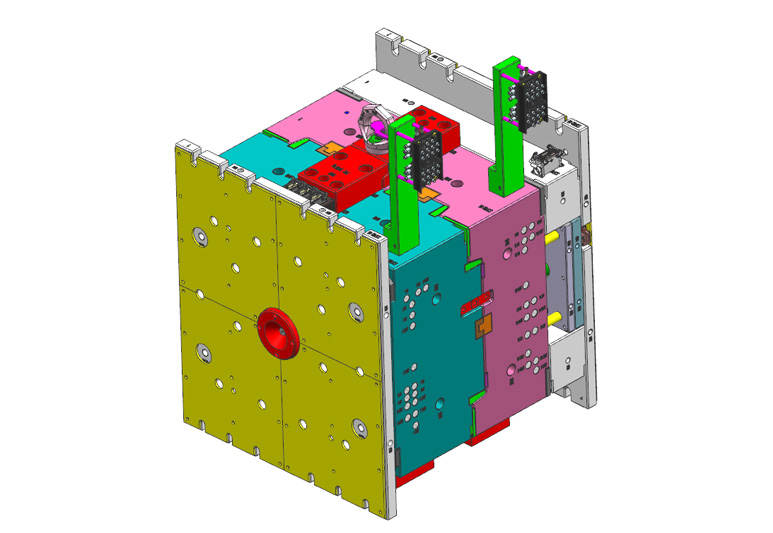

With professional mold designers for automotive lighting, optimized parting line, waterline and slides structure designing etc., excellent tooling design. Client was very satisfied.

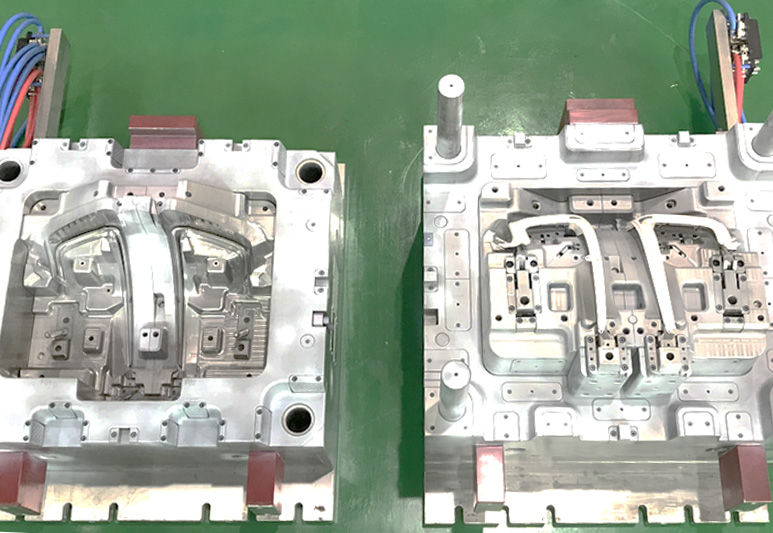

Machining by high speed 5 axis CNC, perfect parting line surfaces getting good spotting. Client approved samples after T2, mold shipment ahead of target two months, client highly appreciated our effective and professional team work.
